Toyota Land Cruiser

 Service Manual

Body Mechanical » Front wiper and washer
Inspection

INSPECT WASHER NOZZLE

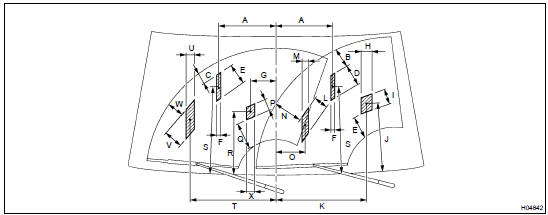

While operating the washer, check if the point where the washer fluid hits the windshield is within the range indicated by the hatched line.

A: Approx. 311 mm (12.24 in.) B: Approx. 110 mm (4.33 in.) C: Approx. 86 mm (3.39 in.) D: Approx. 116 mm (4.57 in.) E: Approx. 205 mm (8.07 in.) F: Approx. 22 mm (0.87 in.) G: Approx. 138 mm (5.43 in.) H: Approx. 60 mm (2.36 in.) I: Approx. 85 mm (3.35 in.) J: Approx. 364 mm (14.33 in.) K: Approx. 496 mm (19.53 in.) L: Approx. 81 mm (3.19 in.) M: Approx. 35 mm (1.38 in.) N: Approx. 157 mm (6.18 in.) O: Approx. 159 mm (6.26 in.) P: Approx. 63 mm (2.48 in.) Q: Approx. 169 mm (6.65 in.) R: Approx. 331 mm (13.03 in.) S: Approx. 465 mm (18.31 in.) T: Approx. 468 mm (18.43 in.) U: Approx. 45 mm (1.77 in.) V: Approx. 104 mm (4.09 in.) W: Approx. 119 mm (4.69 in.) X: Approx. 44 mm (1.73 in.)

Adjustment

Inspection

Installation

Removal

Adjustment

Inspection

Installation

Removal
