Using the Bluetooth® audio system

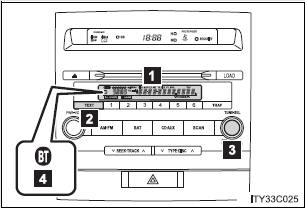

• Audio unit

1. Display

A message, name, number, etc. is displayed.

Lower-case characters and special characters cannot be displayed.

2. Displays information that is too long to be displayed at one time on the display (press and hold)
3. Selects items such as menu and number

Turn: Selects an item Press: Inputs the selected item

4. Bluetooth® connection condition

If “BT” is not displayed, the Bluetooth® audio system cannot be used.

Operating the system using voice commands

By following voice guidance instructions output from the speaker, voice commands enable to the operation of the Bluetooth® audio system without the need to check the display or operate .

•  Operation procedure when using voice commands

Press the talk switch and follow voice guidance instructions.

•  Auxiliary commands when using voice commands

The following auxiliary commands can be used when operating the system using a voice command:

Cancel: Exits the Bluetooth® audio system Repeat: Repeats the previous voice guidance instruction Go back: Returns to the previous procedure Help: Reads aloud the function summary if a help comment is registered for the selected function

Using the Bluetooth® audio system for the first time

Before using the Bluetooth® audio system, it is necessary to register a Bluetooth® enabled portable player in the system. Follow the procedure below to register (pair) a portable player:

STEP 1

Press and select “BT•A MENU” using .

STEP 2

Press the talk switch or select “BT•A Setup” using .

The introductory guidance and portable player name registration instructions are heard.

STEP 3

Select “Pair Audio Player (Pair Audio)” using a voice command or .

STEP 4

Register a portable player name by either of the following methods:

1. Select “Record Name” using , and say the name to be registered.
2. Press the talk switch and say the name to be registered.

A voice guidance instruction to confirm the input is heard.

STEP 5

Select “Confirm” using a voice command or .

A passkey is displayed and heard, and a voice guidance instruction for inputting the passkey into the portable player is heard.

Input the passkey into the portable player.

Refer to the manual that comes with the portable player for the operation of the portable player.

Guidance for registration completion is heard.

If the portable player has a Bluetooth® phone, the phone can be registered at the same time. A voice guidance instruction to register a Bluetooth® phone is heard.

STEP 7

Select “Yes” or “No” using a voice command or .

Menu list of the Bluetooth® audio system

• Normal operation

First menu	Second menu	Third menu	Operation detail
“Setup”	“BT•A Setup”	“Pair Audio”	Registering a portable player
		“Connect”	Selecting a portable player to be used
		“Change Name”	Changing the registered name of a portable player
		“List Audios”	Listing the registered portable players
		“Set Passkey”	Changing the passkey
		“Delete Audio”	Deleting a registered portable player
	“System Setup”	“Guidance Vol”	Setting voice guidance volume
		“Device Name”	Displaying the Bluetooth® device address and name
		“Initialize”	Initializing the system

• When using a voice command

For numbers, say a combination of single digits from zero to nine.

Say the command correctly and clearly.

• Situations that the system may not recognize your voice

• When driving on rough roads
• When driving at high speeds
• When air is blowing out of the vents onto the microphone
• When the air conditioning fan emits a loud noise

• Operations that cannot be performed while driving

• Operating the system with
• Registering a portable player to the system

• Changing the passkey
