Toyota Land Cruiser

 Service Manual

SFI
Accelerator pedal position sensor

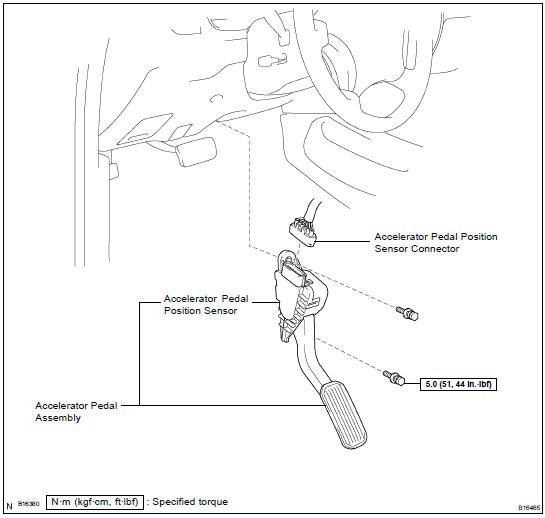

COMPONENTS

INSPECTION

INSPECT ACCELERATOR PEDAL POSITION SENSOR (DI-318 )

If necessary, replace the accelerator pedal assembly.

NOTICE:

• Be careful not to give a shock to the accelerator pedal assembly.
• Be careful not to disassemble the accelerator pedal assembly.

Accelerator pedal position sensor
