Toyota Land Cruiser

 Service Manual

SFI
Fuel pump resistor

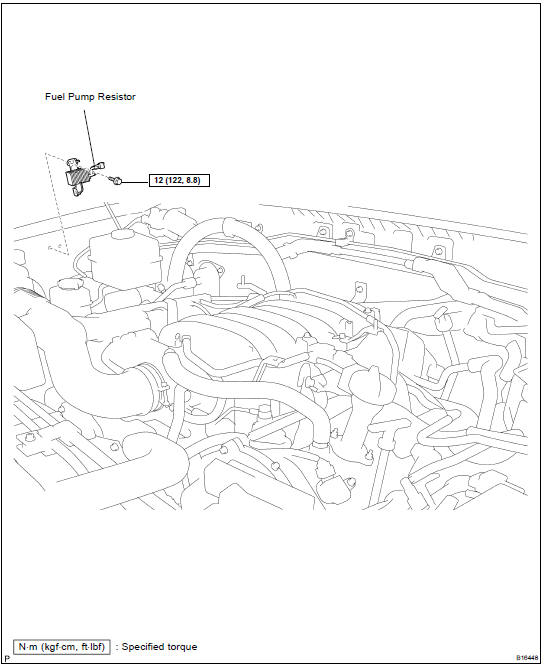

COMPONENTS

INSPECTION

1. REMOVE FUEL PUMP RESISTOR

2. INSPECT FUEL PUMP RESISTOR

Using an ohmmeter, measure the resistance between the terminals.

Resistance: 0.70 - 0.76 W at 20C (68F)

If the resistance is not as specified, replace the resistor.

3. REINSTALL FUEL PUMP RESISTOR

Torque: 12 N·m (122 kgf·cm, 8.8 ft·lbf)
