Toyota Land Cruiser

 Service Manual

Air conditioning
Front cooling unit

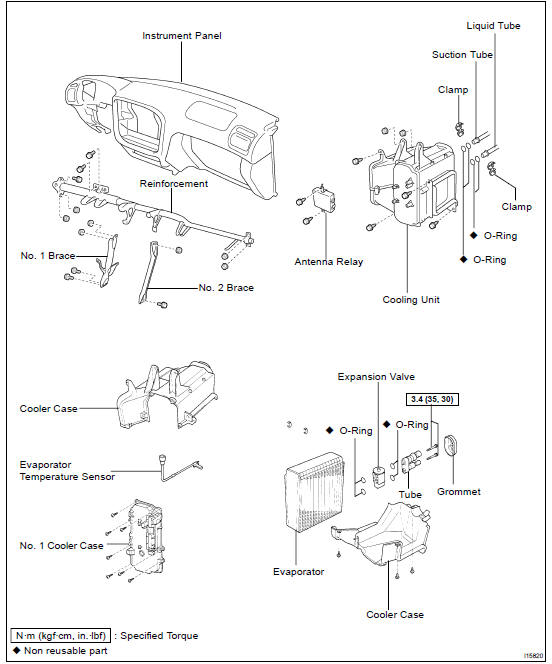

COMPONENTS

• Disassembly
• Removal

Air conditioning control assembly

Air conditioning amplifier (for Rear A/C)

Air conditioning system

Air inlet temperature sensor

Air mix servomotor (for Front A/C)

Air outlet servomotor

Ambient temperature sensor

Blower unit

Blower motor control relay

Compressor and magnetic clutch

Condenser

Drive belt

Front A/C blower motor

Front A/C evaporator

Front cooling unit

Front heater unit

Heater main relay

Magnetic clutch relay

Manifold gauge set

Power transistor (for Rear Heater)

Power transistor (for Rear Cooler)

Pressure switch

Rear A/C control assembly

Rear cooling unit

Refrigerant line

Rear heater relay

Rear heater unit

Room temperature sensor (for Front A/C)

Solar sensor
