Interior features » Using the audio system

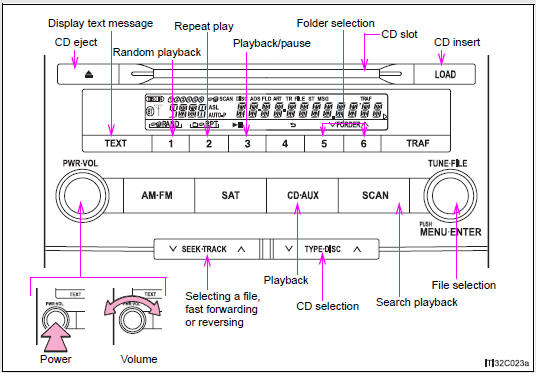

Playing back MP3 and WMA discs

Loading and ejecting MP3 and WMA discs

Selecting a CD

Playing and pausing files

To play or pause a file, press ( ).

Selecting and scanning a folder

• Selecting folders one at a time

Press (∨) or (∧) to select the desired folder.

To return to the first folder, press and hold (∨) until you hear a beep.

•  Selecting the desired folder by cueing the first file of each folder

Press and hold until you hear a beep.

When the desired folder is reached, press the switch once again.

Selecting and scanning a file

• Selecting one file at a time

Turn the dial or press “∧” or “∨” on to select the desired file.

•  Selecting the desired file by cueing the files in the folder

Press .

When the desired file is reached, press once again.

Fast forwarding and reversing files

Press and hold “∧” or “∨” on .

Random playback

• To play files from a particular folder in random order

Press (RAND).

•  To play all of the files on a disc in random order

Press and hold (RAND) until you hear a beep.

Repeating a file or a folder

• Repeating a fil

  e

Press (RPT).

•  Repeating a folde

  r

Press and hold (RPT) until you hear a beep.

Switching the display

Press .

Each time the switch is pressed, the display changes in the order of Folder no./File no./Elapsed time→Folder name→File name→Album title (MP3 only)→Track title→Artist name.

• Display



• Canceling random, repeat and scan playback

Press (RAND), (RPT) or again.

• Error messages

“ERROR”: This indicates a trouble either in the CD or inside the player.

The CD may be dirty, damaged or inserted up-side down.

“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.

• Discs that can be used

Discs with the marks shown below can be used.

Playback may not be possible depending on recording format or disc features, or due to scratches, dirt or deterioration.

• CD player protection feature

To protect the internal components, playback is automatically stopped when a problem is detected.

• If CDs are left inside the CD player or in the ejected position for extended periods

CDs may be damaged and may not play properly.

• Lens cleaners

Do not use lens cleaners. Doing so may damage the CD player.

• MP3 and WMA files

MP3 (MPEG Audio LAYER3) is a standard audio compression format.

Files can be compressed to approximately 1/10 of their original size by using MP3 compression.

WMA (Windows Media Audio) is a Microsoft audio compression format.

This format compresses audio data to a size smaller than that of the MP3 format.

There is a limit to the MP3 and WMA file standards and to the media/formats recorded by them that can be used.

• MP3 file compatibility

•  Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
•  Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
•  Compatible bit rates MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
•  MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)

* Compatible with VBR

•  Compatible channel modes: stereo, joint stereo, dual channel and monaural

• WMA file compatibility

•  Compatible standards WMA Ver. 7, 8, 9
•  Compatible sampling frequencies 32, 44.1, 48 (kHz)
•  Compatible bit rates Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps) Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)

* Only compatible with 2-channel playback

• Compatible media

Media that can be used for MP3 and WMA playback are CD-Rs and CDRWs.

Playback in some instances may not be possible, depending on the status of the CD-R or CD-RW. Playback may not be possible or the audio may jump if the disc is scratched or marked with fingerprints.

• Compatible disc formats

The following disc formats can be used.

•  Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2
•  File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above may not play correctly, and their file names and folder names may not be displayed correctly.

Items related to standards and limitations are as follows.

•  Maximum directory hierarchy: 8 levels
•  Maximum length of folder names/file names: 32 characters
•  Maximum number of folders: 192 (including the root)
•  Maximum number of files per disc: 255

• File names
  The only files that can be recognized as MP3/WMA and played are those with the extension .mp3 or .wma.
• Multi-sessions
  As the audio system is compatible with multi-sessions, it is possible to play discs that contain MP3 and WMA files. However, only the first session can be played.
• ID3 and WMA tags
  ID3 tags can be added to MP3 files, making it possible to record the track title and artist name, etc.

The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.

(The number of characters is based on ID3 Ver. 1.0 and 1.1.) WMA tags can be added to WMA files, making it possible to record the track title and artist name in the same way as with ID3 tags.

• MP3 and WMA playback When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.

  If the discs contain a mixture of music data and MP3 or WMA format data, only music data can be played.

• Extensions
  If the file extensions .mp3 and .wma are used for files other than MP3 and WMA files, they will be mistakenly recognized and played as MP3 and WMA files. This may result in large amounts of interference and damage to the speakers.
• Playback

•  To play MP3 file with steady sound quality, we recommend a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.
•  CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
•  There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the file format, poor sound quality or noise at the start of playback may result. In some cases, playback may not be possible at all.
•  When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc and in some cases, playback may not be possible at all.
•  Microsoft, Windows, and Windows Media are the registered trademarks of Microsoft Corporation in the U.S. and other countries.

NOTICE CDs and adapters that cannot be used Player precautions
